Galaxy

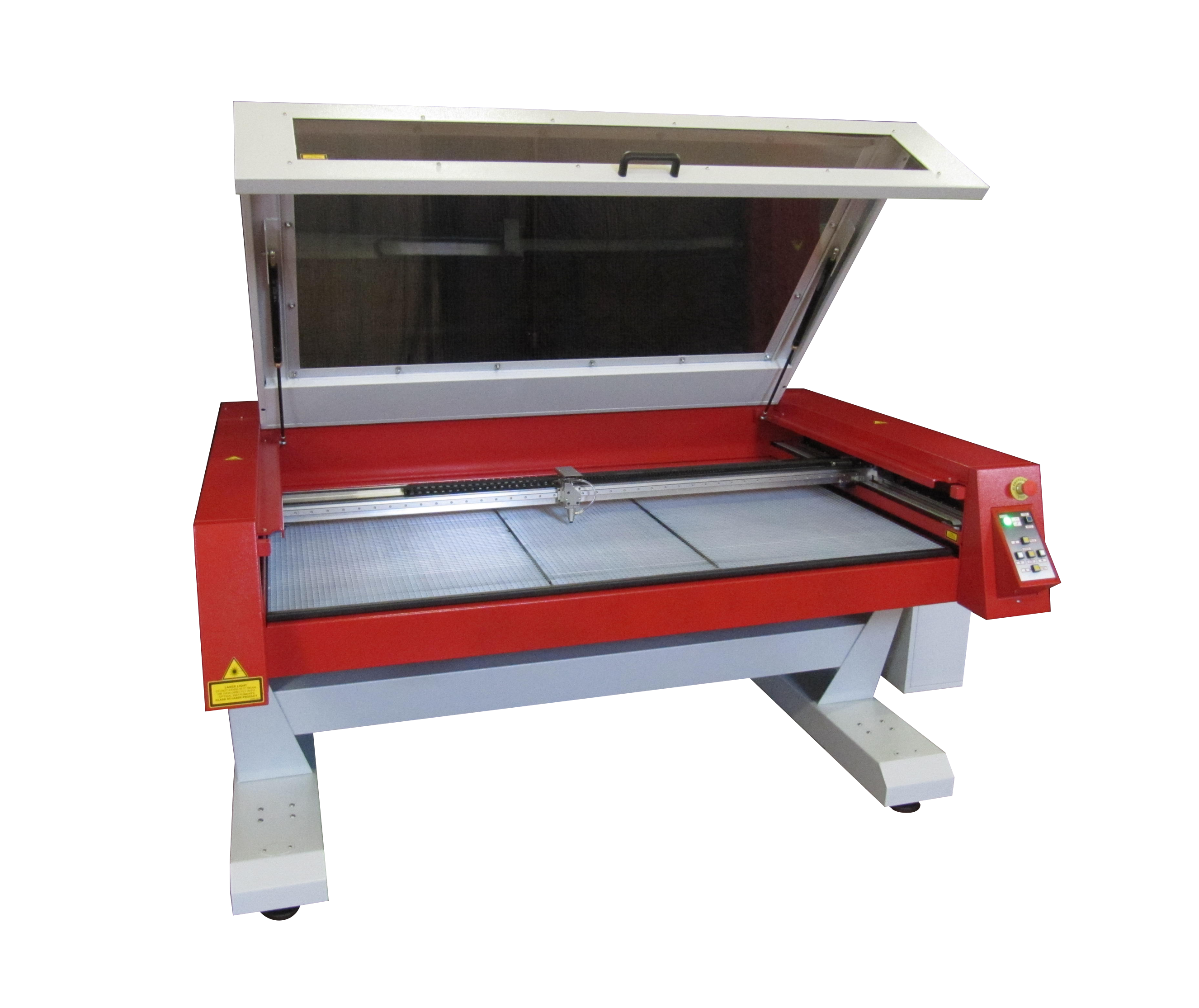

Laser Plotter GALAXY is Proel’s large laser cutting machine used for laser cutting and laser engraving. This machine, available in the 25, 50, 100, 200 Watt version, is ideal for those who need to cut large sizes of material or even to cut material supplied in rolls.

Cutting head operated on two axes by powerful brushless motors, possibility of mounting a fixed cutting plane or a motorized cutting plane for automatic unloading of the worked material. Usable cutting area (1580x870 mm), external fume suction device that may be connected to a filtering unit, Ethernet interface for connection to a Personal Computer, provides for control at different power levels, cleaning of the cutting head using air produced by an internal pump or with air produced by an external source or with gases specific for laser cutting (usually Nitrogen). Laser pointer for positioning the material to be used.

WHAT YOU CAN ACHIEVE


MAIN OPERATING FUNTIONS

  • Memorization of work files until exhaustion SD Card (4 GB capacity)
  • Management of 32 levels of laser power
  • Setting of the cutting/engraving speed and acceleration
  • You can manually position the cutting head by means of the control panel
  • Option to manually handle the cutting plane advancement by means of the control panel
  • "Pause Cut" function
  • Self-diagnostic feature
  • Cutting assisted by a videocamera
  • Cutting of compositions (automatic repetition of the same cutting shape) - only with external control via the Ethernet and PC interface
  • Management of different fume suction modes
  • Allows for the cutting the material in a straight line by means of the control panel - only with external control via the Ethernet and PC interface
  • Work cycles count for each job - only with external control via the Ethernet and PC interface

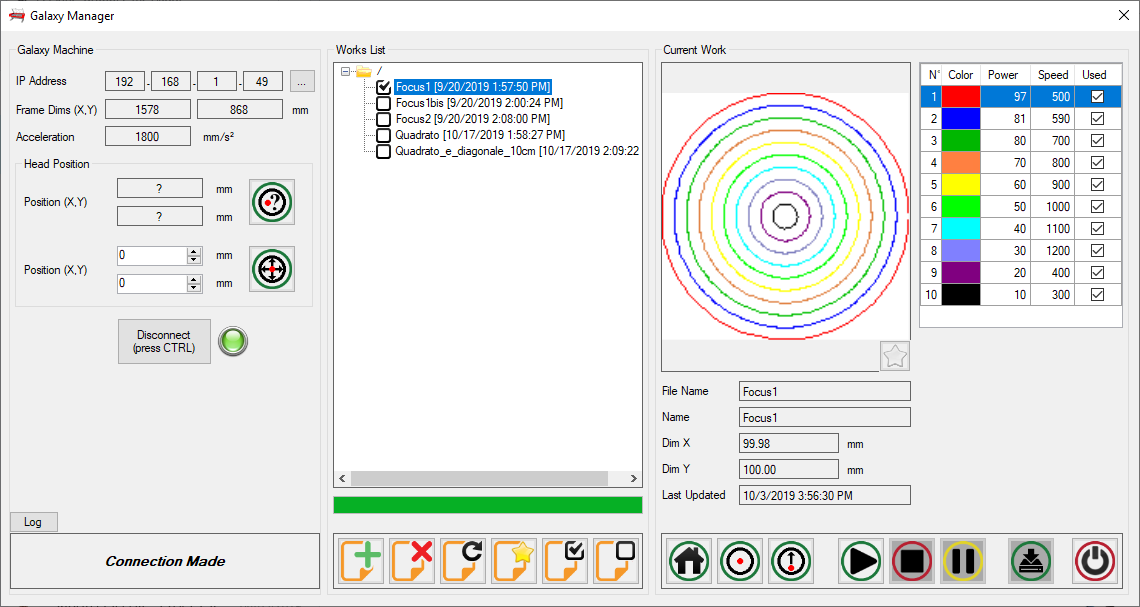

GALAXY MANAGER



A useful application to manage the Galaxy machine via Ethernet.

It allows you to configure the Galaxy machine via Ethernet, to move its head, to send cutting files, to change the power and speed of the individual cutting curves





TECHNICAL SPECIFICATION

Electrical input
1phase 230VAC ±10% - 50/60Hz ±2%
Absorbed power max.
3KVA
Dimensions (WxDxH)
2270x1770x1200 mm
Noise emission
< 70 dB (without fumes suction unit)
Drive motors type
Brushless Servomotor
Working area (WxD)
1500x870 mm (62"x34")
Cutting plane size(WxD)
1680x940 mm (66"x37")
Fumes extraction
top and bottom suction system
Laser source type
CO2 - 10.6 µm - sealed type - RF Air liquid cooled
Laser power
25W / 50W / 100W / 200W / 400W life expentancy at optimal power > 2000 working hours
Laser beam delivery
mirrors and XY movable cutting head
Laser spot diameter
100 µm
Cutting speed
until to 1.2 m/s
Acceleration
1800 mm/s²
Optics cleaning
internal or external air / external gas
Software
Focuscut X - Videocut
Material positioning
red light laser pointer on the cutting head (optional)
Vector Files Maanged
plt, ai, dxf, dwg



The Manufacturer reserves the right to make modifications and improvements without prior warning
